It's simple to connect and configure to your needs. This could include powering 12VDC devices from a 6VDC motorbike battery or to run 12VDC devices from a 24VDC battery found in trucks. These units feature protection against short-circuits, overload and over-heating. They will auto-switch off in the event of overheating. Compact size and all models feature mounting holes.

DC to DC Step Down Voltage Converter Module

- Input voltage: 6-28V DC

- Output voltage: 3-15V DC

- Max output current: 1.5A

- Dimensions: 60(L) x 45(W) x 20(D)mm

AA-0236

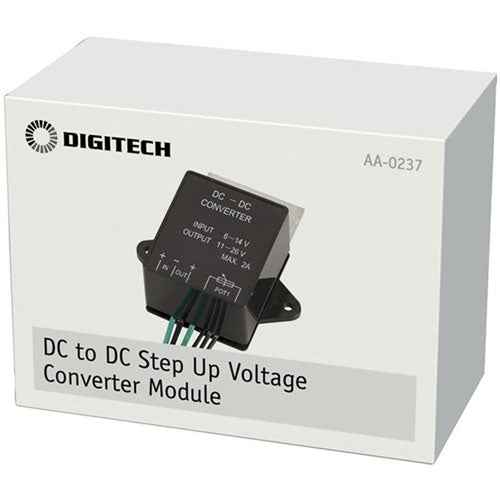

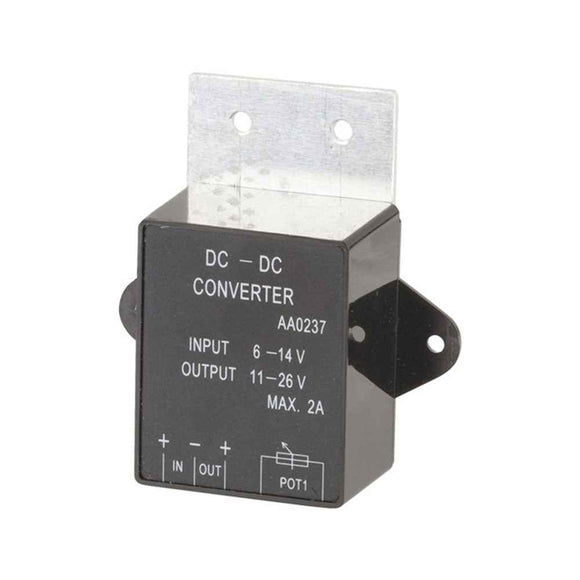

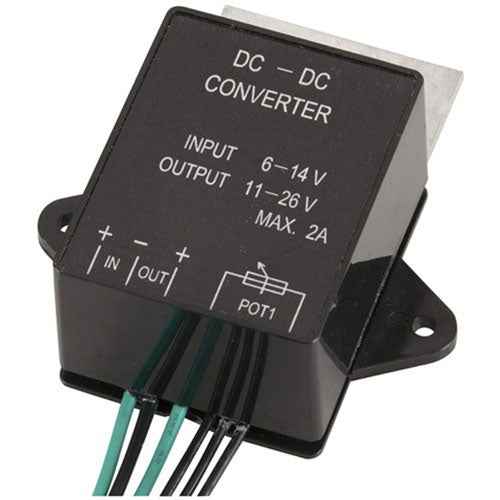

DC to DC Step Up Voltage Converter Module

- Input voltage: 6-14V DC

- Output voltage: 11-26V DC

- Max output current: 2A

- Dimensions: 70(L) x 60(W) x 23(D)mm

AA-0237

24VDC to 12VDC Step Down Voltage Converter Module (not user selectable)

- Input voltage: 24V DC

- Output voltage: 12V DC

- Max output current: 1
